Inheritance diagram for com.offsetnull.bt.service.StellarService:

Collaboration diagram for com.offsetnull.bt.service.StellarService:

Public Member Functions
void	onLowMemory ()

final int	onStartCommand (final Intent intent, final int flags, final int startId)

final void	onCreate ()

final void	onDestroy ()

final void	doDisconnect (final Connection c)

final void	dispatchXMLError (final String error) throws RemoteException

void	dispatchSaveError (String error) throws RemoteException

void	dispatchPluginSaveError (String plugin, String error) throws RemoteException

final void	enableWifiKeepAlive ()

final void	doVibrateBell ()

final void	doNotifyBell (final String display, final String host, final int port)

final void	doDisplayBell ()

final void	disableWifiKeepAlive ()

final void	dispatchToast (final String message, final boolean longtime)

final void	dispatchDialog (final String message)

final void	showConnectionNotification (final String display, final String host, final int port)

final void	removeConnectionNotification (final String display)

final void	doShutdown ()

final IBinder	onBind (final Intent arg0)

final void	setClutch (final String connection)

final void	switchTo (final String display)

final void	reloadWindows ()

final void	sendRawDataToWindow (final byte[] data)

final boolean	isWindowConnected ()

final void	doClearAllButtons ()

final void	doExecuteColorDebug (final Integer iarg)

final void	doDirtyExit ()

final void	doExecuteFullscreen (final boolean set)

final void	doShowKeyboard (final String text, final boolean dopopup, final boolean doadd, final boolean doflush, final boolean doclear, final boolean doclose)

final void	markWindowsDirty ()

final void	markSettingsDirty ()

final void	dispatchKeepLast (final Boolean value)

final void	dispatchShowRegexWarning (final Boolean value)

final void	doExecuteSetOrientation (final Integer value)

final void	doExecuteKeepScreenOn (final Boolean value)

final void	doExecuteFullscreenEditor (final Boolean value)

final void	doExecuteUseSuggestions (final Boolean value)

final void	doExecuteCompatibilityMode (final Boolean value)

Static Public Member Functions
static int	getNotificationId ()

Static Protected Attributes
static final int	MESSAGE_STARTUP = 0

static final int	MESSAGE_NEWCONENCTION = 1

static final int	MESSAGE_SWITCH = 2

static final int	MESSAGE_RELOADSETTINGS = 3

static final int	MESSAGE_STOPANR = 4

Detailed Description

The implementation of the background Service handler.

This class mostly just holds Connection objects and proxys commands made from the foreground window to the appropriate connection.

Member Function Documentation

final void com.offsetnull.bt.service.StellarService.disableWifiKeepAlive ( )

Disables the wifi keep alive.

final void com.offsetnull.bt.service.StellarService.dispatchDialog ( final String message )

Utility method for dispatching a generic error looking dialog on the foreground window.

Parameters

message The message to display.

final void com.offsetnull.bt.service.StellarService.dispatchKeepLast ( final Boolean value )

Implementation of the working method that sets the foreground window input bar's keep last setting.

Parameters

value True for keeplast, false for clear when command is sent.

void com.offsetnull.bt.service.StellarService.dispatchPluginSaveError	(	String	plugin,
		String	error
	)		throws RemoteException

void com.offsetnull.bt.service.StellarService.dispatchSaveError ( String error ) throws RemoteException

final void com.offsetnull.bt.service.StellarService.dispatchShowRegexWarning ( final Boolean value )

Implementation of the working method that sets the foreground window trigger editor regex warning message state.

Parameters

value True for show warning, false for no warning.

final void com.offsetnull.bt.service.StellarService.dispatchToast	(	final String	message,
		final boolean	longtime
	)

Utility method for dispatching a toast message to be displayed by the foreground window.

Parameters

message	The message to show.
longtime	true for Toast.LONG, false for Toast.SHORT

final void com.offsetnull.bt.service.StellarService.dispatchXMLError ( final String error ) throws RemoteException

Dispatches an error dialog in the foreground window.

Parameters

error The error message to show.

Exceptions

RemoteException Thrown when something has gone wrong with the aidl bridge.

final void com.offsetnull.bt.service.StellarService.doClearAllButtons ( )

The utility method to clear all buttons. I don't think that this is actually used, as this code has been folded into the plugin.

Here is the caller graph for this function:

final void com.offsetnull.bt.service.StellarService.doDirtyExit ( )

Working implementation of the dirty exit. That is to close the app without closing the connections first.

Here is the caller graph for this function:

final void com.offsetnull.bt.service.StellarService.doDisconnect ( final Connection c )

The top level disconnect function.

This method is initated by a connection when it has disconnected. This method interfaces with the foreground window if appropriate to show the disconnection message.

Parameters

c	The connection that disconnected.

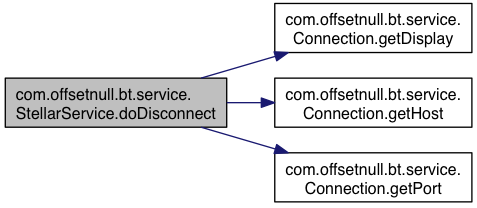

Here is the call graph for this function:

final void com.offsetnull.bt.service.StellarService.doDisplayBell ( )

Implementation of the visual bell callback. Called from a Connection.

final void com.offsetnull.bt.service.StellarService.doExecuteColorDebug ( final Integer iarg )

Implementation of the working code to set the current color debug mode for the foreground window.

Parameters

iarg	The color debug mode to enter.

Here is the caller graph for this function:

final void com.offsetnull.bt.service.StellarService.doExecuteCompatibilityMode ( final Boolean value )

Implementation of the method that sets the compatibility mode preference for the foreground window's editor.

Parameters

value True to use compatibility mode, false to not.

final void com.offsetnull.bt.service.StellarService.doExecuteFullscreen ( final boolean set )

Working implementation of the method that sets the fullscreen option in the foreground window.

Parameters

set	True for fullscreen, false for not fullscreen.

final void com.offsetnull.bt.service.StellarService.doExecuteFullscreenEditor ( final Boolean value )

Implementation of the method that sets the option for a fullscreen editor in the foreground window.

Parameters

value True to use fullscreen editor, false to not.

final void com.offsetnull.bt.service.StellarService.doExecuteKeepScreenOn ( final Boolean value )

Implementation of the method that sets the keep screen on in the foreground window.

Parameters

value True, screen stays on, false screen does not stay on.

final void com.offsetnull.bt.service.StellarService.doExecuteSetOrientation ( final Integer value )

Implementation of the method that sets the preferred orientation for the foreground window.

Parameters

value Integer value, 1= portrait, 2=landscape, 3=auto

final void com.offsetnull.bt.service.StellarService.doExecuteUseSuggestions ( final Boolean value )

Implementation of the method that sets the preference for weather or not to use suggestions in the foreground window editor.

Parameters

value True to use suggestions, false to not.

final void com.offsetnull.bt.service.StellarService.doNotifyBell	(	final String	display,
		final String	host,
		final int	port
	)

The implementation ofthe bell notifier. Connections will call this.

Parameters

display	The display name of the calling connection.
host	The host name of the calling connection.
port	The port number for the calling connection.

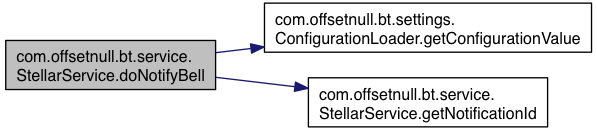

Here is the call graph for this function:

final void com.offsetnull.bt.service.StellarService.doShowKeyboard	(	final String	text,
		final boolean	dopopup,
		final boolean	doadd,
		final boolean	doflush,
		final boolean	doclear,
		final boolean	doclose
	)

Working implementation of the method that pops up the keyboard in the foreground window.

Parameters

text	The text to add to the input bar.
dopopup	True to pop up the keyboard.
doadd	True to apppend text to the input bar.
doflush	True to flush the input bar.
doclear	True to clear the input bar.
doclose	True to close the keyboard.

Here is the caller graph for this function:

final void com.offsetnull.bt.service.StellarService.doShutdown ( )

The generic top level shutdown routine. Attempts to gracefully shut down all active connections.

Here is the caller graph for this function:

final void com.offsetnull.bt.service.StellarService.doVibrateBell ( )

The implementation of the bell vibrator. Connections will call this.

final void com.offsetnull.bt.service.StellarService.enableWifiKeepAlive ( )

Enables Wifi KeepAlive.

static int com.offsetnull.bt.service.StellarService.getNotificationId ( )

static

Gets a new unique id for notifications. Always increments the value so it will be unique with each call.

Returns: the new unique identifier number.

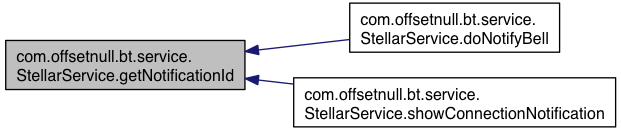

Here is the caller graph for this function:

final boolean com.offsetnull.bt.service.StellarService.isWindowConnected ( )

Utility method for checking weather or not the window is showing.

Returns: true if the window is showing, false if the window is not showing.

final void com.offsetnull.bt.service.StellarService.markSettingsDirty ( )

Utility method to mark the foreground window (non-window) settings as dirty so they are reloaded.

final void com.offsetnull.bt.service.StellarService.markWindowsDirty ( )

Utility method to mark the foreground window settings as dirty, so they are reloaded at next opportunity.

final IBinder com.offsetnull.bt.service.StellarService.onBind ( final Intent arg0 )

The implementation of Service.onBind().

Parameters

arg0	the Intent that was used to start this service.

Returns: the IBinder to give to the foreground process that is requesting to bind.

See Also: Android AIDL docs.

final void com.offsetnull.bt.service.StellarService.onCreate ( )

The implementation of the onCreate() Service method.

final void com.offsetnull.bt.service.StellarService.onDestroy ( )

Implementation of the Service.onDestroy() method.

Here is the call graph for this function:

void com.offsetnull.bt.service.StellarService.onLowMemory ( )

final int com.offsetnull.bt.service.StellarService.onStartCommand	(	final Intent	intent,
		final int	flags,
		final int	startId
	)

Implementation of onStartCommand(...) Service function.

Parameters

intent	see docs
flags	see docs
startId	see docs

Returns: see docs

See Also: Android Documentation for Service.onStartCommand()

Here is the call graph for this function:

final void com.offsetnull.bt.service.StellarService.reloadWindows ( )

Generic method to make the currently active connection reload its windows.

final void com.offsetnull.bt.service.StellarService.removeConnectionNotification ( final String display )

Called by a connection when disconnected to remove the associated notification.

Parameters

display The display name of the disconnected connection.

final void com.offsetnull.bt.service.StellarService.sendRawDataToWindow ( final byte[] data )

Dispatches data to the foreground window.

Parameters

data	the data to send.

final void com.offsetnull.bt.service.StellarService.setClutch ( final String connection )

Setter method for mConnectionClutch.

Parameters

connection The new connection to make active.

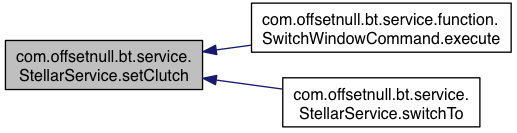

Here is the caller graph for this function:

final void com.offsetnull.bt.service.StellarService.showConnectionNotification	(	final String	display,
		final String	host,
		final int	port
	)

Method called when a connection has connected successfully.

This method coordinates with the multi-connection system to ensure that at least one notification is used for the startForeground(...) method.

Parameters

display	The display name of the connection.
host	The host name of the connection.
port	The port number of the connection.

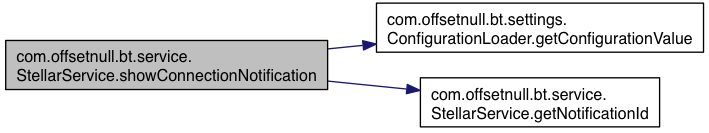

Here is the call graph for this function:

final void com.offsetnull.bt.service.StellarService.switchTo ( final String display )

Utility method to switch the active connection.

Parameters

display The display name of the connection to switch to.

Here is the call graph for this function:

Member Data Documentation

final int com.offsetnull.bt.service.StellarService.MESSAGE_NEWCONENCTION = 1

staticprotected

Message constant indicating a new connection launch.

final int com.offsetnull.bt.service.StellarService.MESSAGE_RELOADSETTINGS = 3

staticprotected

Message constant indicating that the active connection should reload its settings.

final int com.offsetnull.bt.service.StellarService.MESSAGE_STARTUP = 0

staticprotected

Message constant indicating system startup.

final int com.offsetnull.bt.service.StellarService.MESSAGE_STOPANR = 4

staticprotected

Not really sure what this is for but I think it had something to do with debugging an ANR in the service.

final int com.offsetnull.bt.service.StellarService.MESSAGE_SWITCH = 2

staticprotected

Message constant indicating that the active connection should switch to a different connection.

The documentation for this class was generated from the following file:

/Users/render/apps/BlowTorch/BTLib/src/com/offsetnull/bt/service/StellarService.java

Public Member Functions

Static Public Member Functions

Static Protected Attributes

Detailed Description

Member Function Documentation

Member Data Documentation
