Inheritance diagram for com.offsetnull.bt.service.Connection:

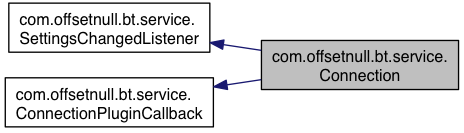

Collaboration diagram for com.offsetnull.bt.service.Connection:

Classes
class	Data

Public Member Functions
	Connection (final String display, final String host, final int port, final StellarService service)

final void	windowXCallS (final String name, final String function, final Object o) throws RemoteException

final void	reloadSettings ()

final void	buildTriggerSystem ()

final void	registerWindowCallback (final String name, final IWindowCallback callback)

final void	unregisterWindowCallback (final IWindowCallback callback)

final void	setTriggersDirty ()

final void	sendDataToWindow (final String message)

final void	sendBytesToWindow (final byte[] data)

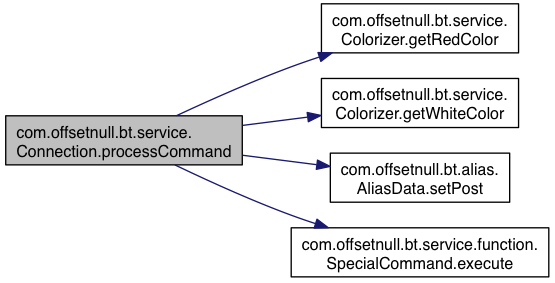

final Data	processCommand (final String cmd)

final void	switchTo (final String connection)

final WindowToken[]	getWindows ()

final String	getScript (final String plugin, final String name)

final void	executeFunctionCallback (final int id, final String callback, final String args)

final void	pluginXcallS (final String plugin, final String function, final String str)

final WindowToken	getWindowByName (final String desired)

final HashMap< String, TriggerData >	getTriggers ()

final HashMap< String, TriggerData >	getPluginTriggers (final String name)

final void	addTrigger (final TriggerData data)

final void	updateTrigger (final TriggerData from, final TriggerData to)

final void	updatePluginTrigger (final String selectedPlugin, final TriggerData from, final TriggerData to)

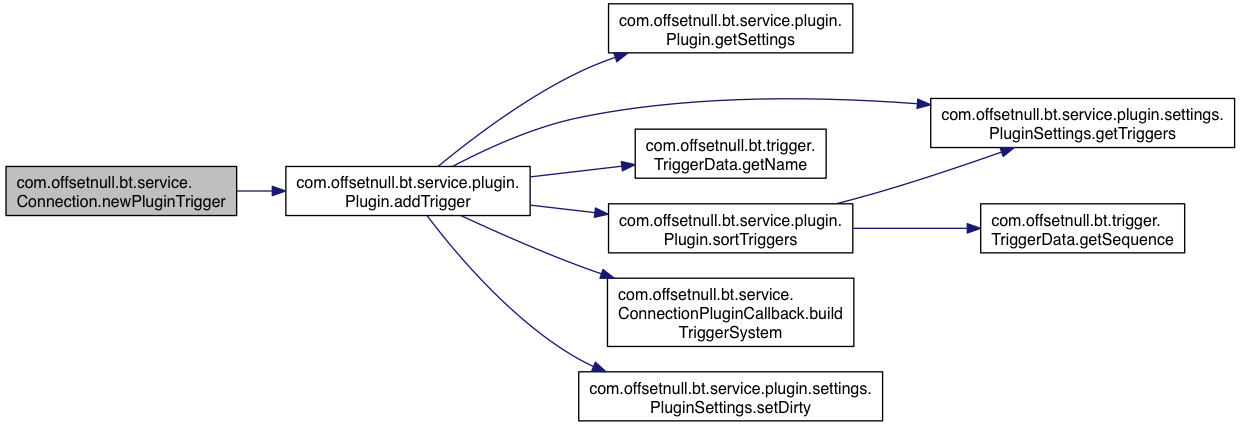

final void	newPluginTrigger (final String selectedPlugin, final TriggerData data)

final TriggerData	getPluginTrigger (final String selectedPlugin, final String pattern)

final TriggerData	getTrigger (final String pattern)

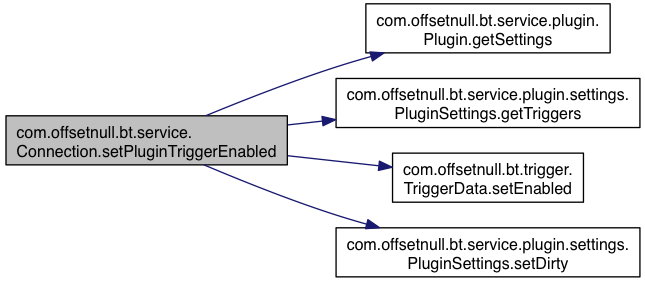

final void	setPluginTriggerEnabled (final String selectedPlugin, final boolean enabled, final String key)

final void	setTriggerEnabled (final boolean enabled, final String key)

final void	deletePluginTrigger (final String selectedPlugin, final String which)

final void	deleteTrigger (final String which)

final void	setAliases (final HashMap< String, AliasData > map)

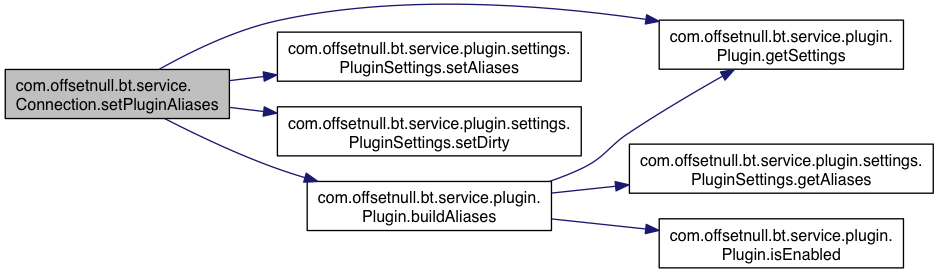

final void	setPluginAliases (final String plugin, final HashMap< String, AliasData > map)

final AliasData	getPluginAlias (final String plugin, final String key)

final AliasData	getAlias (final String key)

final void	deleteAlias (final String key)

final void	deletePluginAlias (final String plugin, final String key)

final HashMap< String, AliasData >	getAliases ()

final HashMap< String, AliasData >	getPluginAliases (final String plugin)

final ArrayList< String >	getSystemCommands ()

final void	setPluginAliasEnabled (final String plugin, final boolean enabled, final String key)

final void	setAliasEnabled (final boolean enabled, final String key)

final byte[]	doKeyboardAliasReplace (final byte[] bytes, final Boolean reprocess)

final void	startReconnect ()

final void	doReconnect ()

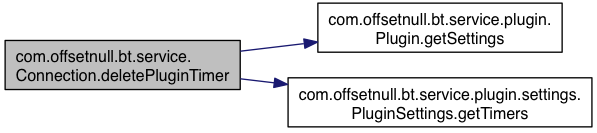

final void	deletePluginTimer (final String plugin, final String name)

final TimerData	getTimer (final String name)

final void	deleteTimer (final String name)

final TimerData	getPluginTimer (final String plugin, final String name)

final void	addPluginTimer (final String plugin, final TimerData newtimer)

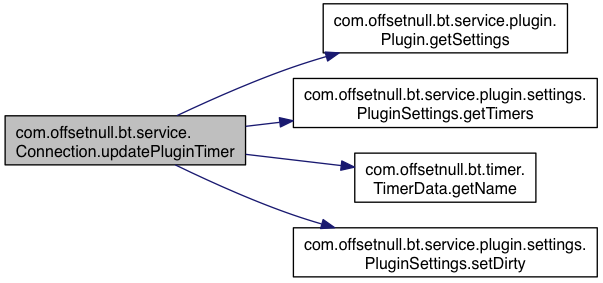

final void	updatePluginTimer (final String plugin, final TimerData old, final TimerData newtimer)

final void	updateTimer (final TimerData old, final TimerData newtimer)

final HashMap< String, TimerData >	getTimers ()

final HashMap< String, TimerData >	getPluginTimers (final String plugin)

final void	addTimer (final TimerData newtimer)

final boolean	isWindowShowing ()

final String	getDisplayName ()

final Context	getContext ()

final void	playTimer (final String key)

final void	playPluginTimer (final String plugin, final String timer)

final void	pauseTimer (final String key)

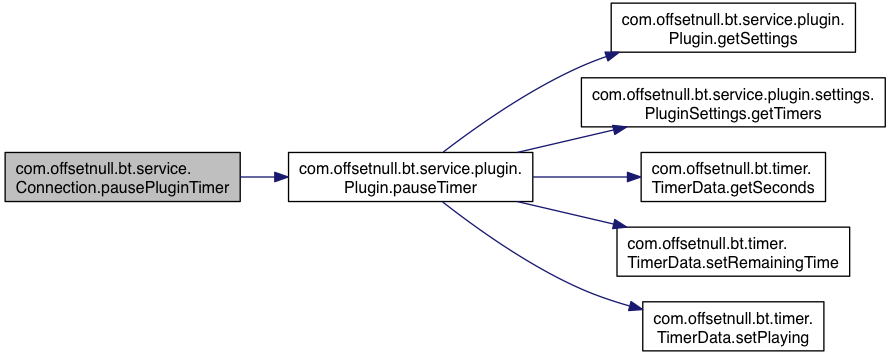

final void	pausePluginTimer (final String plugin, final String timer)

final void	stopTimer (final String key)

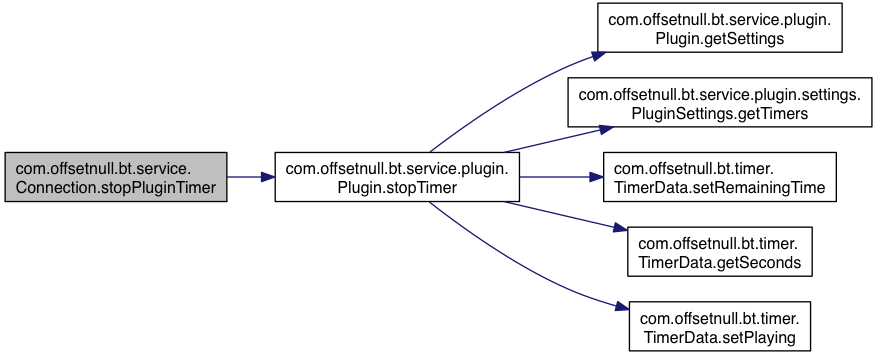

final void	stopPluginTimer (final String plugin, final String key)

final SettingsGroup	getSettings ()

final SettingsGroup	getPluginSettings (final String plugin)

final void	updateBooleanSetting (final String key, final boolean value)

final void	updatePluginBooleanSetting (final String plugin, final String key, final boolean value)

final void	updateStringSetting (final String key, final String value)

final void	updatePluginStringSetting (final String plugin, final String key, final String value)

final void	updateIntegerSetting (final String key, final int value)

final void	updatePluginIntegerSetting (final String plugin, final String key, final int value)

final void	updateFloatSetting (final String key, final float value)

final void	updatePluginFloatSetting (final String plugin, final String key, final float value)

final void	handleWindowSettingsChanged (final String window, final String key, final String value)

final void	updateSetting (final String key, final String value)

final void	updateWindowBufferMaxValue (final String plugin, final String window, final int amount)

final void	saveMainSettings ()

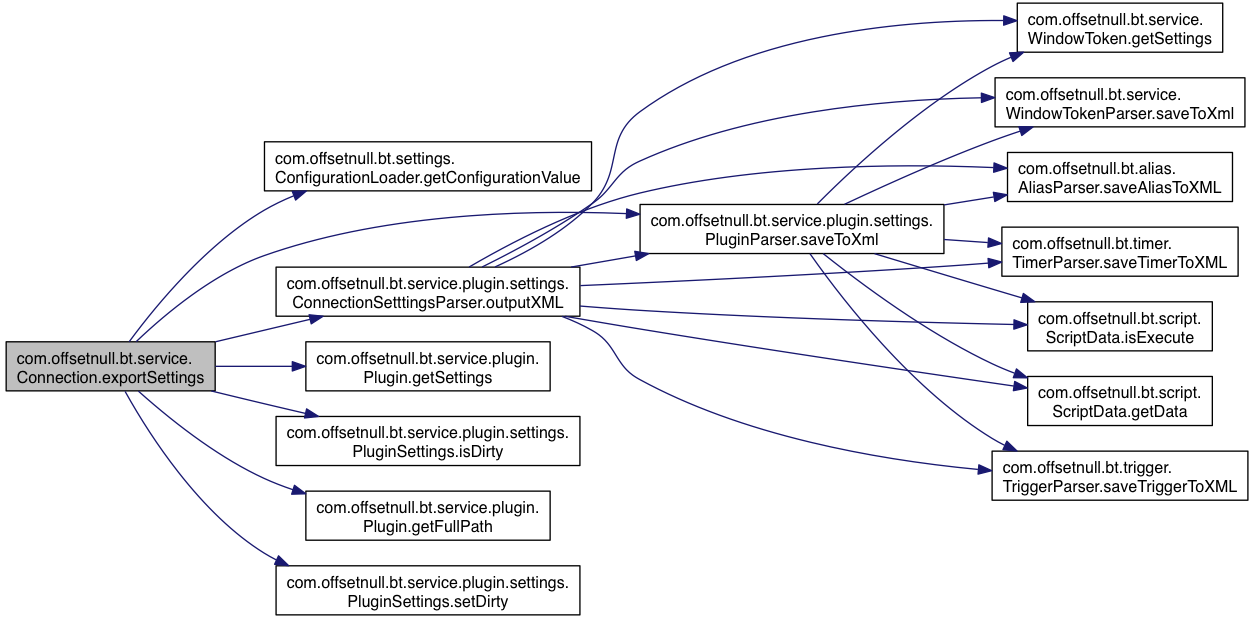

final void	exportSettings (final String path)

final void	startExportSequence (final String path)

final void	attatchWindowSettingsChangedListener (final WindowToken w)

final boolean	isKeepLast ()

final boolean	isFullScren ()

final String	getHostName ()

final int	getPort ()

final void	resetSettings ()

final void	doResetSettings ()

final void	startLoadSettingsSequence (final String path)

final void	doAddLink (final String path)

final void	addLink (final String path)

final void	deletePlugin (final String plugin)

final void	setPluginEnabled (final String plugin, final boolean enabled)

final HashMap< String, DirectionData >	getDirectionData ()

final void	setDirectionData (final HashMap< String, DirectionData > data)

final int	getTitleBarHeight ()

final int	getStatusBarHeight ()

final boolean	isLinkLoaded (final String link)

final void	initWindows ()

final void	shutdown ()

final String	getPluginPath (final String plugin)

final void	dispatchLuaText (final String str)

final void	callPluginFunction (final String plugin, final String function)

final SettingsChangedListener	getSettingsListener ()

final void	callPlugin (final String plugin, final String function, final String data)

final boolean	pluginSupports (final String plugin, final String function)

final boolean	isPluginInstalled (final String desired)

final Handler	getHandler ()

final ArrayList< Plugin >	getPlugins ()

final DataPumper	getPump ()

final Processor	getProcessor ()

final String	getDisplay ()

final String	getHost ()

final boolean	isConnected ()

final StellarService	getService ()

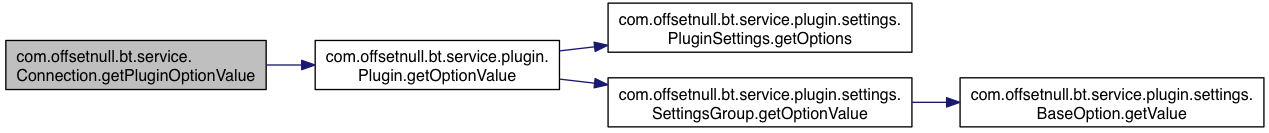

String	getPluginOptionValue (String plugin, String key)

Public Member Functions inherited from com.offsetnull.bt.service.SettingsChangedListener
void	updateSetting (String key, String value)

Public Member Functions inherited from com.offsetnull.bt.service.ConnectionPluginCallback
WindowToken	getWindowByName (String name)

void	attatchWindowSettingsChangedListener (WindowToken w)

void	callPlugin (String plugin, String function, String data)

boolean	pluginSupports (String plugin, String function)

Static Public Member Functions
static int	getResId (final String variableName, final Context context, final Class<?> c)

Static Public Attributes
static final int	MESSAGE_STARTUP = 1

static final int	MESSAGE_STARTCOMPRESS = 2

static final int	MESSAGE_PROCESSORWARNING = 3

static final int	MESSAGE_SENDOPTIONDATA = 4

static final int	MESSAGE_BELLINC = 5

static final int	MESSAGE_DODIALOG = 6

static final int	MESSAGE_PROCESS = 7

static final int	MESSAGE_DISCONNECTED = 8

static final int	MESSAGE_MCCPFATALERROR = 9

static final int	MESSAGE_SENDDATA_BYTES = 9

static final int	MESSAGE_LINETOWINDOW = 10

static final int	MESSAGE_LUANOTE = 11

static final int	MESSAGE_DRAWINDOW = 12

static final int	MESSAGE_NEWWINDOW = 13

static final int	MESSAGE_WINDOWBUFFER = 15

static final int	MESSAGE_ADDFUNCTIONCALLBACK = 16

static final int	MESSAGE_WINDOWXCALLS = 17

static final int	MESSAGE_INVALIDATEWINDOWTEXT = 18

static final int	MESSAGE_GMCPTRIGGERED = 19

static final int	MESSAGE_SENDDATA_STRING = 20

static final int	MESSAGE_SAVESETTINGS = 21

static final int	MESSAGE_EXPORTFILE = 22

static final int	MESSAGE_IMPORTFILE = 23

static final int	MESSAGE_SENDGMCPDATA = 24

static final int	MESSAGE_WINDOWXCALLB = 25

static final int	MESSAGE_PLUGINLUAERROR = 26

static final int	MESSAGE_CONNECTED = 30

static final int	MESSAGE_TRIGGER_LUA_ERROR = 32

static final int	MESSAGE_RELOADSETTINGS = 33

static final int	MESSAGE_SETTRIGGERSDIRTY = 34

static final int	MESSAGE_TERMINATED_BY_PEER = 41

Protected Member Functions
final void	dispatchLuaError (final String message)

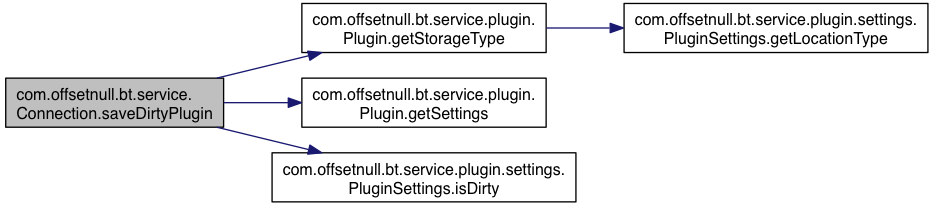

final void	saveDirtyPlugin (final String changedplugin)

final void	doInvalidateWindowText (final String name) throws RemoteException

final void	windowXCallB (final String name, final String functions, final byte[] bytes) throws RemoteException

final void	redrawWindow (final String win)

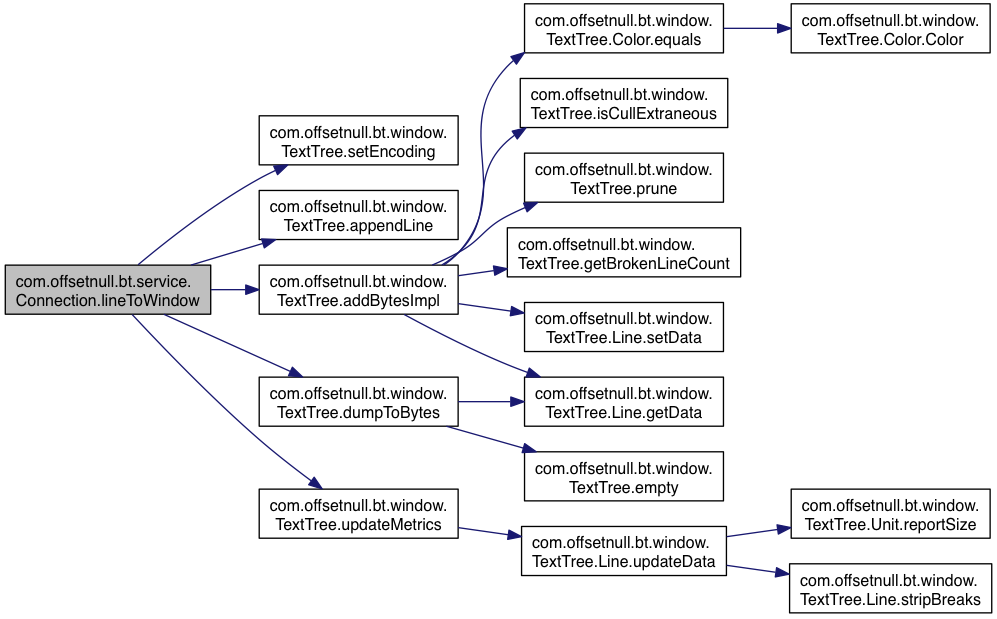

final void	lineToWindow (final String target, final Object line) throws RemoteException

final void	doDisconnect (final boolean override)

final void	killNetThreads (final boolean noreconnect)

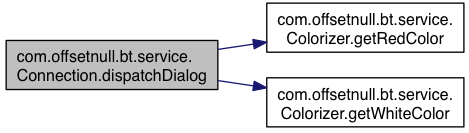

final void	dispatchDialog (final String str)

Detailed Description

Connection class implementation.

Constructor & Destructor Documentation

com.offsetnull.bt.service.Connection.Connection	(	final String	display,
		final String	host,
		final int	port,
		final StellarService	service
	)

Public constructor for the Connection.

Parameters

display	The display name.
host	The host name.
port	The port number.
service	Parent that initated this connection.

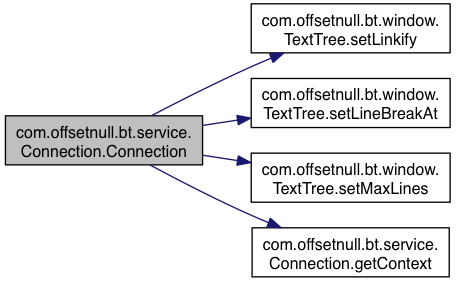

Here is the call graph for this function:

Member Function Documentation

final void com.offsetnull.bt.service.Connection.addLink ( final String path )

Entry point for the foreground window to add an external plugin and reload the settings.

Parameters

path	The location of the external settings file.

final void com.offsetnull.bt.service.Connection.addPluginTimer	(	final String	plugin,
		final TimerData	newtimer
	)

Adds a timer to the target plugin.

Parameters

plugin	Name of the target plugin.
newtimer	New timer data.

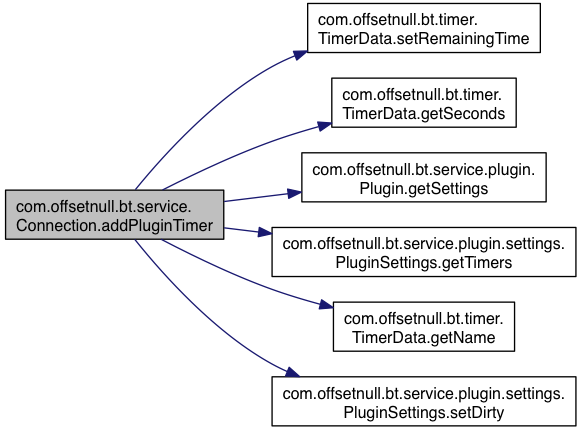

Here is the call graph for this function:

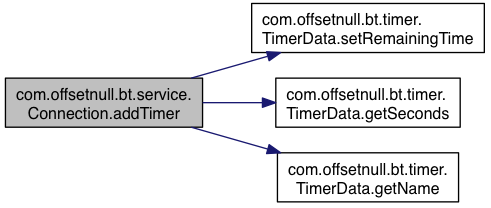

final void com.offsetnull.bt.service.Connection.addTimer ( final TimerData newtimer )

Adds a new timer into the main settings plugin.

Parameters

newtimer New timer to add.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.addTrigger ( final TriggerData data )

Adds a trigger into the main settings plugin.

Parameters

data	The trigger to add.

final void com.offsetnull.bt.service.Connection.attatchWindowSettingsChangedListener ( final WindowToken w )

Attatches a WindowSettingsChangedListener to the given WindowToken.

Parameters

w	The window to attatch a new settings changed listener to.

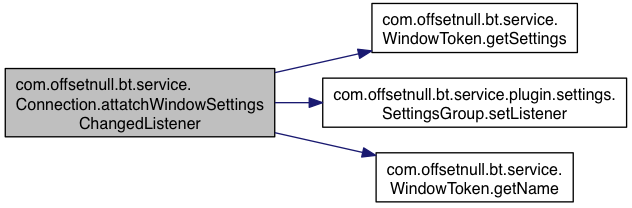

Here is the call graph for this function:

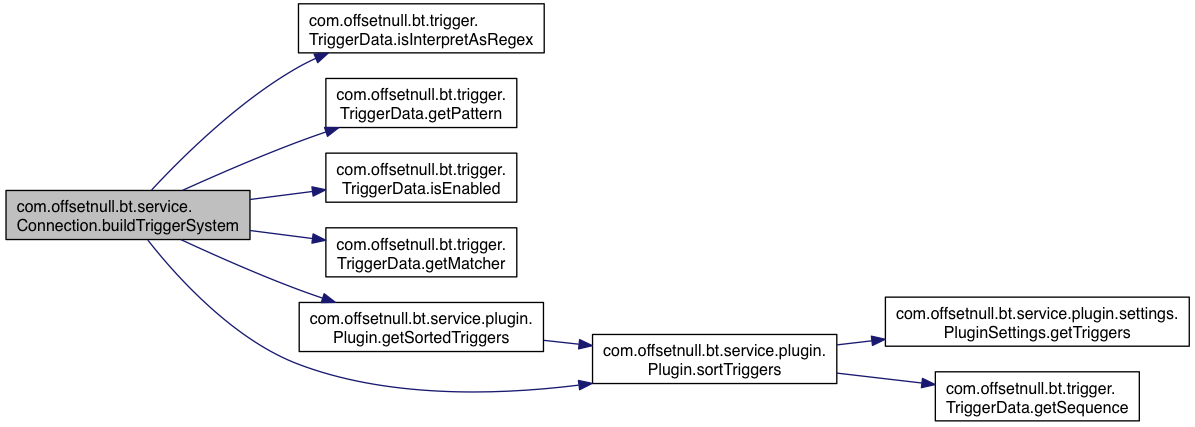

final void com.offsetnull.bt.service.Connection.buildTriggerSystem ( )

Work horse function to rebuild the trigger system.

I think this is called from a number of placed, but it should really be called from dispatch() when triggers are dirty.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.callPlugin	(	final String	plugin,
		final String	function,
		final String	data
	)

final void com.offsetnull.bt.service.Connection.callPluginFunction	(	final String	plugin,
		final String	function
	)

Calls an anonymous global function in the target plugin. Does not provide an arugment.

Parameters

plugin	Name of the target plugin.
function	Name of the function to call.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.deleteAlias ( final String key )

Removes an alias form the main settings plugin.

Parameters

key	The pre part of the alias to delete.

final void com.offsetnull.bt.service.Connection.deletePlugin ( final String plugin )

Entry poit routine for removing a plugin.

Parameters

plugin The name of the plugin to remove.

final void com.offsetnull.bt.service.Connection.deletePluginAlias	(	final String	plugin,
		final String	key
	)

Removes an alias from the target plugin.

Parameters

plugin	The name of the plugin to affect.
key	The pre part of the alias to remove.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.deletePluginTimer	(	final String	plugin,
		final String	name
	)

Removes a timer from the target plugin.

Parameters

plugin	Name of the target plugin.
name	Name of the timer to remove.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.deletePluginTrigger	(	final String	selectedPlugin,
		final String	which
	)

Removes a trigger from the target plugin.

Parameters

selectedPlugin	Name of the plugin to search in.
which	Name of the trigger to remove.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.deleteTimer ( final String name )

Removes a timer from the main settings plugin.

Parameters

name	Name of the trigger to remove.

final void com.offsetnull.bt.service.Connection.deleteTrigger ( final String which )

Removes a trigger from the main settings plugin.

Parameters

which Name of the trigger to remove.

final void com.offsetnull.bt.service.Connection.dispatchDialog ( final String str )

protected

Called from a few places I think. Triggers the network disconnected dialog in the foreground window. Unless the auto reconnect is set.

Parameters

str	The message fro the dialog.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.dispatchLuaError ( final String message )

protected

Quick frontend for dispatchNoProcess(...) for sending a lua error message.

Parameters

message The message to show.

final void com.offsetnull.bt.service.Connection.dispatchLuaText ( final String str )

Entry point for Plugins to send data to the foreground window without trigger parsing.

Parameters

str	The string to send.

final void com.offsetnull.bt.service.Connection.doAddLink ( final String path )

Work horse for the foreground window to add an external plugin and reload the settings.

Parameters

path	The location of the external settings file.

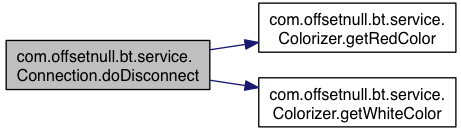

final void com.offsetnull.bt.service.Connection.doDisconnect ( final boolean override )

protected

Called from the DataPumper when the net threads have been shut down.

Parameters

override Indicates weather the auto reconnect should be overridden.

Here is the call graph for this function:

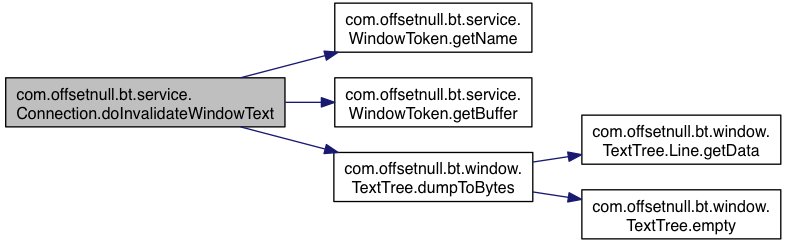

final void com.offsetnull.bt.service.Connection.doInvalidateWindowText ( final String name ) throws RemoteException

protected

Work horse method for plugins to invalidate a target window's text.

Parameters

name	Name of the window that should invalidate it's text.

Exceptions

RemoteException Thrown when there is a problem with the aidl bridge.

Here is the call graph for this function:

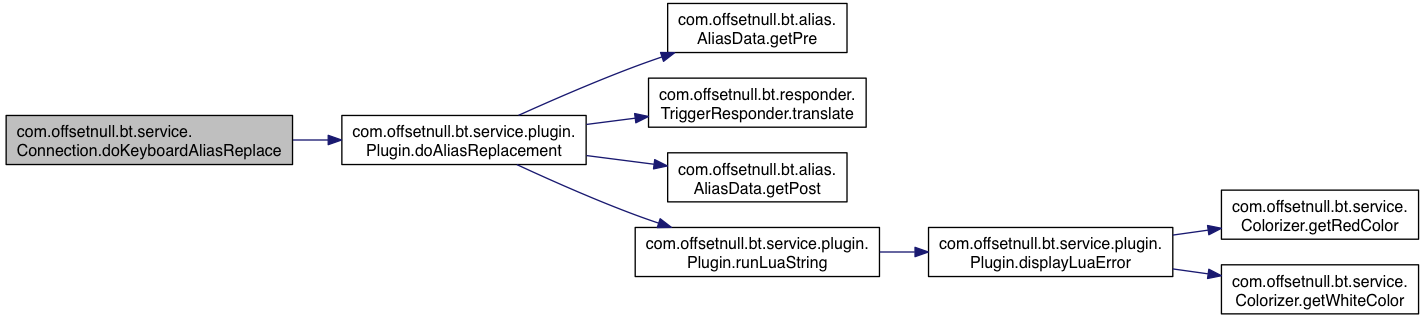

final byte [] com.offsetnull.bt.service.Connection.doKeyboardAliasReplace	(	final byte[]	bytes,
		final Boolean	reprocess
	)

Helper function for the keyboard command. Does an alias replacment in a special kind of way.

Parameters

bytes	Bytes to process.
reprocess	Weather to do recursive alias replacement.

Returns: The processed command bytes.

Here is the call graph for this function:

Here is the caller graph for this function:

final void com.offsetnull.bt.service.Connection.doReconnect ( )

Helper method to initiate a reconnect right now.

final void com.offsetnull.bt.service.Connection.doResetSettings ( )

Work horse routine that actually resets the settings.

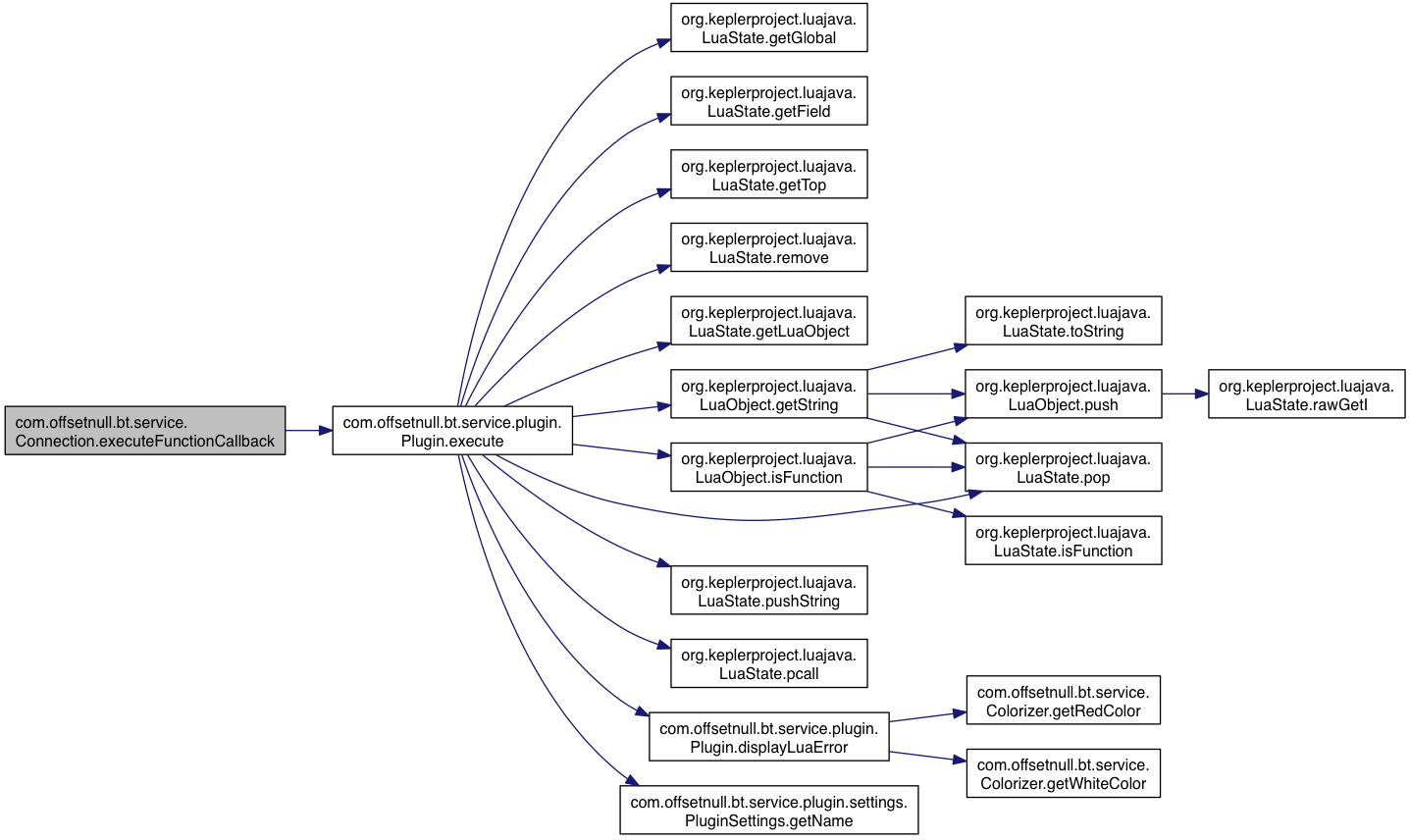

final void com.offsetnull.bt.service.Connection.executeFunctionCallback	(	final int	id,
		final String	callback,
		final String	args
	)

Calls an anonymous global function in the target plugin with arguments.

Parameters

id	The ID of the plugin to target.
callback	The name of the desired function to execute.
args	The data to supply to
callback.

Here is the call graph for this function:

Here is the caller graph for this function:

final void com.offsetnull.bt.service.Connection.exportSettings ( final String path )

Export settings routine. Called from either the main settings save routine or the export settings dialog.

Parameters

path	File name to save to. Must be absolute from the OS root directory.

Here is the call graph for this function:

final AliasData com.offsetnull.bt.service.Connection.getAlias ( final String key )

Gets an alias from the main settings plugin.

Parameters

key	The pre part of the alias.

Returns: The AliasData associated with key

final HashMap<String, AliasData> com.offsetnull.bt.service.Connection.getAliases ( )

Gets the alias map for the main settings plugin.

Returns: The alais map for the main settings plugin.

final Context com.offsetnull.bt.service.Connection.getContext ( )

Helper method for getting the application context out here in the desert of the Service.

Returns: The application context.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

Here is the caller graph for this function:

final HashMap<String, DirectionData> com.offsetnull.bt.service.Connection.getDirectionData ( )

Gets the direction data from the main settings plugin.

Returns: The direction map.

final String com.offsetnull.bt.service.Connection.getDisplay ( )

Getter for the display name.

Returns: the launcher display name for this connection.

Here is the caller graph for this function:

final String com.offsetnull.bt.service.Connection.getDisplayName ( )

Getter method for mDisplay.

Returns: the display name for this connection.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final Handler com.offsetnull.bt.service.Connection.getHandler ( )

Getter for mHandler.

Returns: The handler associated with this connection.

Here is the caller graph for this function:

final String com.offsetnull.bt.service.Connection.getHost ( )

Getter for the host name.

Returns: the host name this connection uses.

Here is the caller graph for this function:

final String com.offsetnull.bt.service.Connection.getHostName ( )

Getter for mHost.

Returns: mHost;

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final AliasData com.offsetnull.bt.service.Connection.getPluginAlias	(	final String	plugin,
		final String	key
	)

Gets an alias for a target plugin.

Parameters

plugin	Name of the plugin to search.
key	The pre part of the alias.

Returns: The AliasData associated with key.

Here is the call graph for this function:

final HashMap<String, AliasData> com.offsetnull.bt.service.Connection.getPluginAliases ( final String plugin )

Gets the alias map for a target plugin.

Parameters

plugin The desired plugin to interrogate.

Returns: The alias map for plugin.

Here is the call graph for this function:

String com.offsetnull.bt.service.Connection.getPluginOptionValue	(	String	plugin,
		String	key
	)

Here is the call graph for this function:

final String com.offsetnull.bt.service.Connection.getPluginPath ( final String plugin )

Gets the path for a plugin.

Parameters

plugin Name of the plugin to interrogate.

Returns: The full path of the plugin.

Here is the call graph for this function:

final ArrayList<Plugin> com.offsetnull.bt.service.Connection.getPlugins ( )

Getter for the plugin list.

Returns: The plugin list in loaded order.

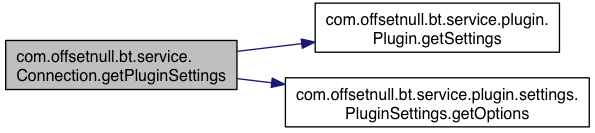

final SettingsGroup com.offsetnull.bt.service.Connection.getPluginSettings ( final String plugin )

Gets the settings object for a target plugin.

Parameters

plugin Name of the target plugin.

Returns: The settings for the target plugin. Returns null if name is not a loaded plugin.

Here is the call graph for this function:

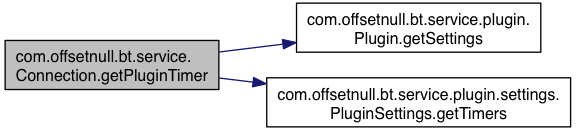

final TimerData com.offsetnull.bt.service.Connection.getPluginTimer	(	final String	plugin,
		final String	name
	)

Gets a timer from the target plugin.

Parameters

plugin	Name of the target plugin.
name	Name of the trigger to get.

Returns: The trigger associated with name.

Here is the call graph for this function:

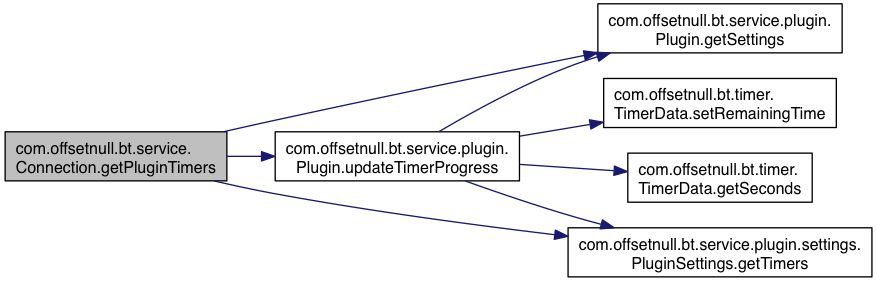

final HashMap<String, TimerData> com.offsetnull.bt.service.Connection.getPluginTimers ( final String plugin )

Gets the timer map for a target plugin.

Parameters

plugin Name of the target plugin.

Returns: The tier map.

Here is the call graph for this function:

final TriggerData com.offsetnull.bt.service.Connection.getPluginTrigger	(	final String	selectedPlugin,
		final String	pattern
	)

Gets a trigger in the target plugin.

Parameters

selectedPlugin	Name of the plugin to look in.
pattern	Name of the desired trigger.

Returns: The trigger, null if it does not exist.

Here is the call graph for this function:

final HashMap<String, TriggerData> com.offsetnull.bt.service.Connection.getPluginTriggers ( final String name )

Helper function to get the triggers for a given plugin.

Parameters

name	The name of the plugin to interrogate.

Returns: The triggers of the given plugin, null if name does not correspond to a loaded plugin.

Here is the call graph for this function:

final int com.offsetnull.bt.service.Connection.getPort ( )

Getter for this connection's port value.

Returns: the port number this connection is using.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

Here is the caller graph for this function:

final Processor com.offsetnull.bt.service.Connection.getProcessor ( )

Getter for mProcessor.

Returns: the processor associated with this connection.

final DataPumper com.offsetnull.bt.service.Connection.getPump ( )

Getter for mPump.

Returns: the data pump for this connection.

static int com.offsetnull.bt.service.Connection.getResId	(	final String	variableName,
		final Context	context,
		final Class<?>	c
	)

static

Helper method for reverse mapping R.java constants from name to id.

Parameters

variableName	The desired field name e.g. "alias_dialog".
context	THe current application context to use.
c	The class to search, this is usually R.layout or R.drawable.

Returns: The integer id of variableName or -1 if the class does not have a field named variableName.

final String com.offsetnull.bt.service.Connection.getScript	(	final String	plugin,
		final String	name
	)

Called from the foreground window. This method fetches a named script body from a plugin.

Parameters

plugin	The plugin to look in.
name	The name of the script to fetch.

Returns: The script body.

Here is the call graph for this function:

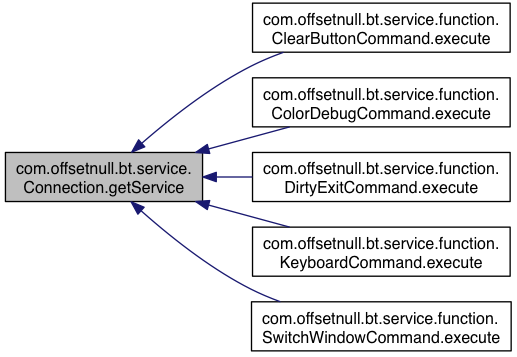

final StellarService com.offsetnull.bt.service.Connection.getService ( )

Getter for mService. This is really ugly and should be fixed immediatly.

Returns: the service that initated this connection.

Here is the caller graph for this function:

final SettingsGroup com.offsetnull.bt.service.Connection.getSettings ( )

Gets the settings object for the main settings plugin.

Returns: The settings for the main settings plugin.

Here is the caller graph for this function:

final SettingsChangedListener com.offsetnull.bt.service.Connection.getSettingsListener ( )

Gets the default SettingsChangedListener used by the parent Connection.

Returns: The SettingsChangedListener.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final int com.offsetnull.bt.service.Connection.getStatusBarHeight ( )

Getter for the status bar height.

Returns: the status bar height.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final ArrayList<String> com.offsetnull.bt.service.Connection.getSystemCommands ( )

Gets the list of all the installed system commands.

Returns: The system command list.

final TimerData com.offsetnull.bt.service.Connection.getTimer ( final String name )

Gets a timer from the main settings plugin.

Parameters

name	Name of the timer to get.

Returns: The timer associated with name.

final HashMap<String, TimerData> com.offsetnull.bt.service.Connection.getTimers ( )

Gets the timer map for the main settings plugin.

Returns: The timer map.

final int com.offsetnull.bt.service.Connection.getTitleBarHeight ( )

Getter for the title bar height.

Returns: the title bar height.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final TriggerData com.offsetnull.bt.service.Connection.getTrigger ( final String pattern )

Gets a trigger from the main settings plugin.

Parameters

pattern Name of the trigger to get.

Returns: The trigger, null if it does not exist.

final HashMap<String, TriggerData> com.offsetnull.bt.service.Connection.getTriggers ( )

Helper function to get the triggers for the main conenction settings.

Returns: the triggers for the main connection settings.

final WindowToken com.offsetnull.bt.service.Connection.getWindowByName ( final String desired )

Helper function to get a window by name.

Parameters

desired The name of the window to look up.

Returns: The WindowToken for the corresponding window name.

Here is the call graph for this function:

final WindowToken [] com.offsetnull.bt.service.Connection.getWindows ( )

Gets the current window token list in loaded order as an array.

Returns: The array of window tokens in loaded order.

final void com.offsetnull.bt.service.Connection.handleWindowSettingsChanged	(	final String	window,
		final String	key,
		final String	value
	)

Work horse of the main window settings change listener.

Parameters

window	Name of the window that was affected.
key	Name of the key that changed.
value	The value that it was changed to.

final void com.offsetnull.bt.service.Connection.initWindows ( )

Kicks off the loadInternalSettings() routine.

final boolean com.offsetnull.bt.service.Connection.isConnected ( )

getter for mIsConnected.

Returns: the connected state of this connection.

final boolean com.offsetnull.bt.service.Connection.isFullScren ( )

Target for the foreground window to check if the full screen settings is set.

Returns: the value of the full screen option.

final boolean com.offsetnull.bt.service.Connection.isKeepLast ( )

Target for the foreground window to check if the keep last setting is set.

Returns: value of the keep list settings.

final boolean com.offsetnull.bt.service.Connection.isLinkLoaded ( final String link )

Utility method to test to see if a link has been loaded.

Parameters

link	The path of the link to test. Relative to the BlowTorch sd card root.

Returns: The state of the target plugin. true = loaded, false = unloaded.

final boolean com.offsetnull.bt.service.Connection.isPluginInstalled ( final String desired )

Test to see of a plugin is installed.

Parameters

desired Name of the desired plugin.

Returns: is it loaded or not.

final boolean com.offsetnull.bt.service.Connection.isWindowShowing ( )

Helper method to see if the window is currently being shown.

Returns: visibility state of the foreground window.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final void com.offsetnull.bt.service.Connection.killNetThreads ( final boolean noreconnect )

protected

Called from various sources to kill the DataPumper and all of its threads.

Parameters

noreconnect true if there should be no reconnect attempt made.

final void com.offsetnull.bt.service.Connection.lineToWindow	(	final String	target,
		final Object	line
	)		throws RemoteException

protected

Actual working method for the LineToWindow Lua function.

Parameters

target	Name of the window to recieve the line.
line	The TextTree.Line to send to
target

Exceptions

RemoteException Thrown when there is a problem with the aidl bridge.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.newPluginTrigger	(	final String	selectedPlugin,
		final TriggerData	data
	)

Adds a new trigger in the target plugin.

Parameters

selectedPlugin	Target plugin for the new trigger.
data	The new trigger.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.pausePluginTimer	(	final String	plugin,
		final String	timer
	)

Pauses a timer in the target plugin.

Parameters

plugin	Name of the target plugin.
timer	Name of the timer to pause.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.pauseTimer ( final String key )

Pauses a timer in the main settings plugin.

Parameters

key	Name of the plugin to pause.

final void com.offsetnull.bt.service.Connection.playPluginTimer	(	final String	plugin,
		final String	timer
	)

Starts a timer in the target plugin.

Parameters

plugin	Name of the target plugin.
timer	Name of the timer to start.

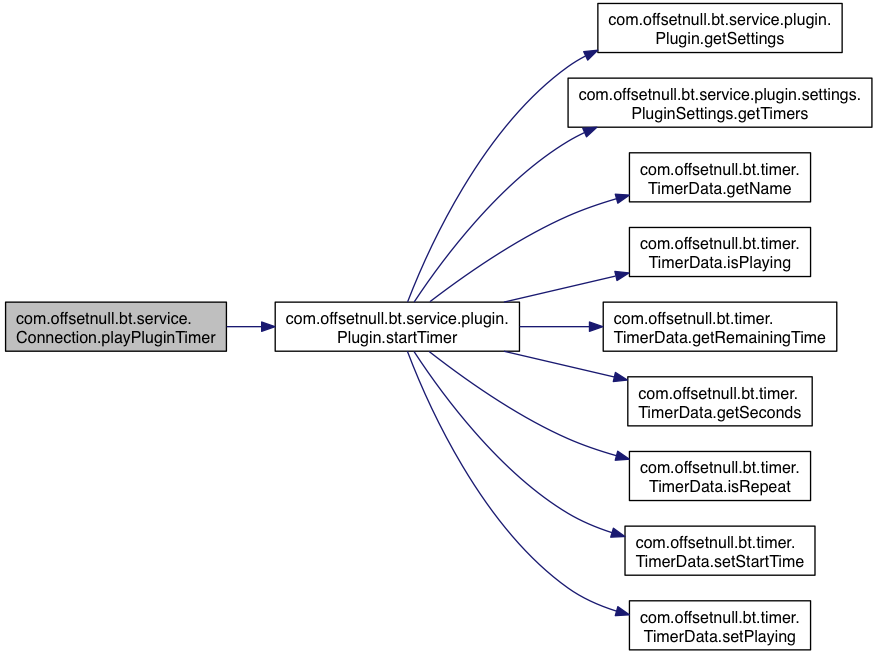

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.playTimer ( final String key )

Starts a timer in the main settings plugin with the target name.

Parameters

key	Name of the timer to start.

final boolean com.offsetnull.bt.service.Connection.pluginSupports	(	final String	plugin,
		final String	function
	)

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.pluginXcallS	(	final String	plugin,
		final String	function,
		final String	str
	)

The reciever of the foreground window PluginXCallS Lua function.

Parameters

plugin	The name of the plugin to look in.
function	The name of the anonymous global function to call.
str	The argument to pass to function.

final Data com.offsetnull.bt.service.Connection.processCommand ( final String cmd )

Data generator for outside package use of the Data class.

Returns: A new data Generic command processor. This looks for "." commands.

Parameters

cmd	The input string to parse.

Returns: The Data object containing the string to return to the server and the string to return to the window.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.redrawWindow ( final String win )

protected

end of the line of the DrawWindow function. I don't think this is used.

Parameters

win	Name of the window to redraw.

final void com.offsetnull.bt.service.Connection.registerWindowCallback	(	final String	name,
		final IWindowCallback	callback
	)

Called from the aidl bridge housing in StellarService when the foreground window has started a new window and needs to let the Connection know that a new window is open for it.

Parameters

name	The name of the new window.
callback	The IWindowCallback aidl conenction object associated with the window.

final void com.offsetnull.bt.service.Connection.reloadSettings ( )

Calling this method will reload the connection settings and all plugins.

final void com.offsetnull.bt.service.Connection.resetSettings ( )

Entry point for the foreground window to reset the settings for this connection.

final void com.offsetnull.bt.service.Connection.saveDirtyPlugin ( final String changedplugin )

protected

Saves dirty plugins or the main settings wad.

Parameters

changedplugin The name of the plugin, "" will save the main settings.

Note: This doesn't work as far as I know.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.saveMainSettings ( )

The main starting point for the save settings routine. This is called for a few different locations.

final void com.offsetnull.bt.service.Connection.sendBytesToWindow ( final byte[] data )

Sends bytes to the main output window.

Parameters

data	The bytes to send.

final void com.offsetnull.bt.service.Connection.sendDataToWindow ( final String message )

Sends a string to the main output window.

Parameters

message The string to send.

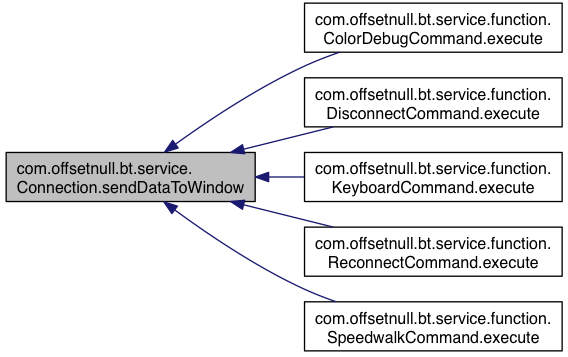

Here is the caller graph for this function:

final void com.offsetnull.bt.service.Connection.setAliasEnabled	(	final boolean	enabled,
		final String	key
	)

Sets the enabled state of an alias in the main settings plugin.

Parameters

enabled	Desired state of the alias.
key	The pre part of the alias to affect.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.setAliases ( final HashMap< String, AliasData > map )

Sets the aliases for the main settings plugin. This comes from the foreground window in one glob.

Parameters

map	The new alias map (HashMap<String, AliasData>).

final void com.offsetnull.bt.service.Connection.setDirectionData ( final HashMap< String, DirectionData > data )

Sets the directio data for the main settings plugin. This is supplied from the foreground window.

Parameters

data	Diretion data wad from to use for the main settings wad.

final void com.offsetnull.bt.service.Connection.setPluginAliasEnabled	(	final String	plugin,
		final boolean	enabled,
		final String	key
	)

Sets the enabled state of an alias in the target plugin.

Parameters

plugin	Name of the target plugin.
enabled	Desired state of the alias.
key	The pre part of the alias to affect.

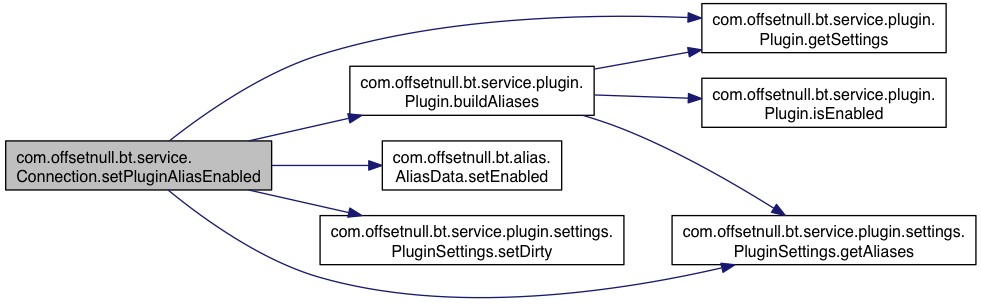

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.setPluginAliases	(	final String	plugin,
		final HashMap< String, AliasData >	map
	)

Sets the aliases for a given plugin. This comes from the foreground window in one glob.

Parameters

plugin	Name of the target plugin to affect.
map	The new alias map (HashMap<String, AliasData>)

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.setPluginEnabled	(	final String	plugin,
		final boolean	enabled
	)

Sets a plugin enabled.

Parameters

plugin	Name of the plugin to affect.
enabled	Desired state of the plugin.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.setPluginTriggerEnabled	(	final String	selectedPlugin,
		final boolean	enabled,
		final String	key
	)

Sets the enabled state of a trigger in the target plugin.

Parameters

selectedPlugin	Name of the target plugin to affect.
enabled	Desired state of the trigger.
key	The name of the trigger to affect.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.setTriggerEnabled	(	final boolean	enabled,
		final String	key
	)

Sets the enabled state of a trigger in the main settings plugin.

Parameters

enabled	Desired state of the target trigger.
key	Name of the trigger to affect.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.setTriggersDirty ( )

Setter for triggersDirty.

Implements com.offsetnull.bt.service.ConnectionPluginCallback.

final void com.offsetnull.bt.service.Connection.shutdown ( )

Immediatly shuts down this connection and all associated data structures.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.startExportSequence ( final String path )

Access point for the foreground window to initate a custom export action with the provided path.

Parameters

path	Path to save settings to, this must be absolute from the root directory (?)

final void com.offsetnull.bt.service.Connection.startLoadSettingsSequence ( final String path )

Entry point for the foreground window to import a custom settings file at the given location.

Parameters

path	Path of the settings to load.

final void com.offsetnull.bt.service.Connection.startReconnect ( )

Helper method that kicks off the reconnection sequence.

final void com.offsetnull.bt.service.Connection.stopPluginTimer	(	final String	plugin,
		final String	key
	)

Stops a timer in the target plugin.

Parameters

plugin	Name of the target plugin.
key	Name of the timer to stop.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.stopTimer ( final String key )

Stops a timer in the main settings plugin.

Parameters

key	Name of the timer to stop.

final void com.offsetnull.bt.service.Connection.switchTo ( final String connection )

Switches to another open connection.

Parameters

connection Name of the connection to switch to.

Here is the caller graph for this function:

final void com.offsetnull.bt.service.Connection.unregisterWindowCallback ( final IWindowCallback callback )

Called from the aidl bridge housing in StellarService when the foreground window has stopped and destroyed a window and needs to let the Connection know that the IWindowCallback is invalid.

Parameters

callback The IWindowCallback aidl connection object of the destroyed window.

final void com.offsetnull.bt.service.Connection.updateBooleanSetting	(	final String	key,
		final boolean	value
	)

Updates a boolean setting in the main settings plugin.

Parameters

key	id of the setting to affect.
value	new value for setting key

final void com.offsetnull.bt.service.Connection.updateFloatSetting	(	final String	key,
		final float	value
	)

Updates a float setting in the main settings plugin.

Parameters

key	key id of the setting to update.
value	the value to use.

final void com.offsetnull.bt.service.Connection.updateIntegerSetting	(	final String	key,
		final int	value
	)

Udpates an integer setting in the main settings plugin.

Parameters

key	key id of the setting to affect.
value	the value to use.

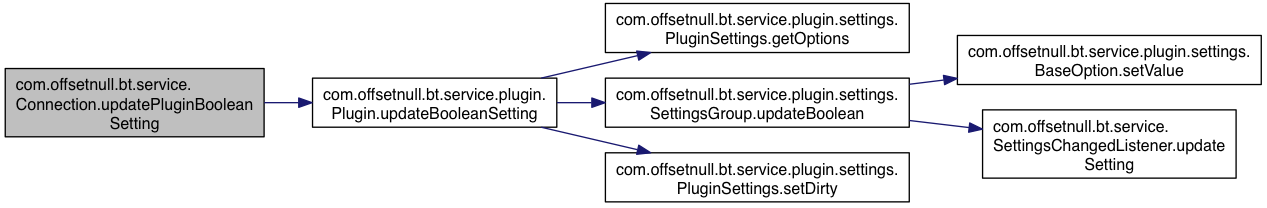

final void com.offsetnull.bt.service.Connection.updatePluginBooleanSetting	(	final String	plugin,
		final String	key,
		final boolean	value
	)

Updates a boolean setting in the target plugin.

Parameters

plugin	Name of the target plugin.
key	key id of the setting to affect.
value	the value to use.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updatePluginFloatSetting	(	final String	plugin,
		final String	key,
		final float	value
	)

Updates a float setting in the target plugin.

Parameters

plugin	Name of the target plugin.
key	key id of the setting to affect.
value	the value to use.

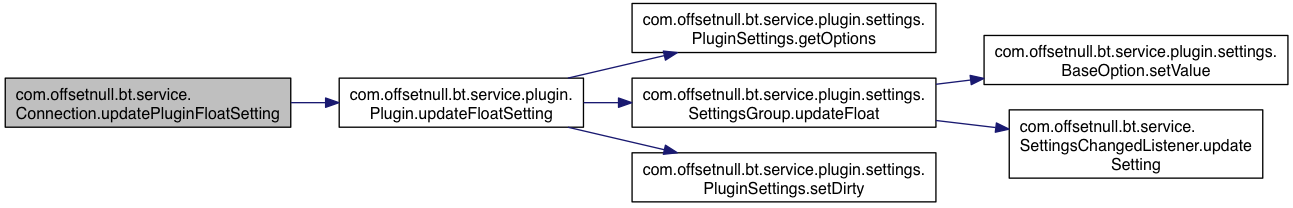

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updatePluginIntegerSetting	(	final String	plugin,
		final String	key,
		final int	value
	)

Updates an integer setting in the target plugin.

Parameters

plugin	Name of the target plugin.
key	key id of the setting to affect.
value	the value to use.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updatePluginStringSetting	(	final String	plugin,
		final String	key,
		final String	value
	)

Updates a string setting in the target plugin.

Parameters

plugin	Name of the target plugin.
key	key id of the setting to affect.
value	the value to use.

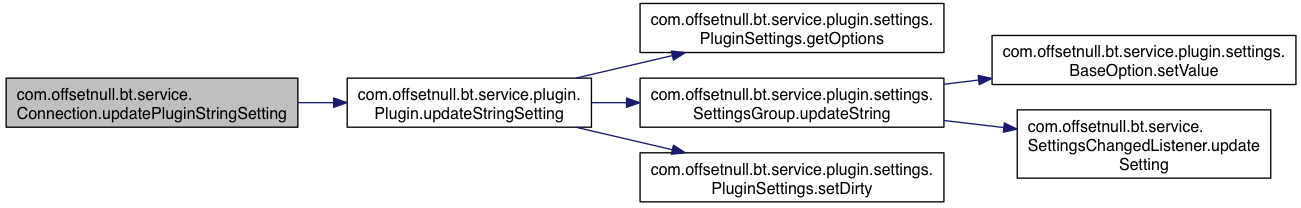

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updatePluginTimer	(	final String	plugin,
		final TimerData	old,
		final TimerData	newtimer
	)

Updates a timer in the target plugin.

Parameters

plugin	Name of the target plugin.
old	Old timer data.
newtimer	New timer data.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updatePluginTrigger	(	final String	selectedPlugin,
		final TriggerData	from,
		final TriggerData	to
	)

Updates a trigger in the target plugin.

Parameters

selectedPlugin	Name of the plugin to work in.
from	Old plugin.
to	New plugin.

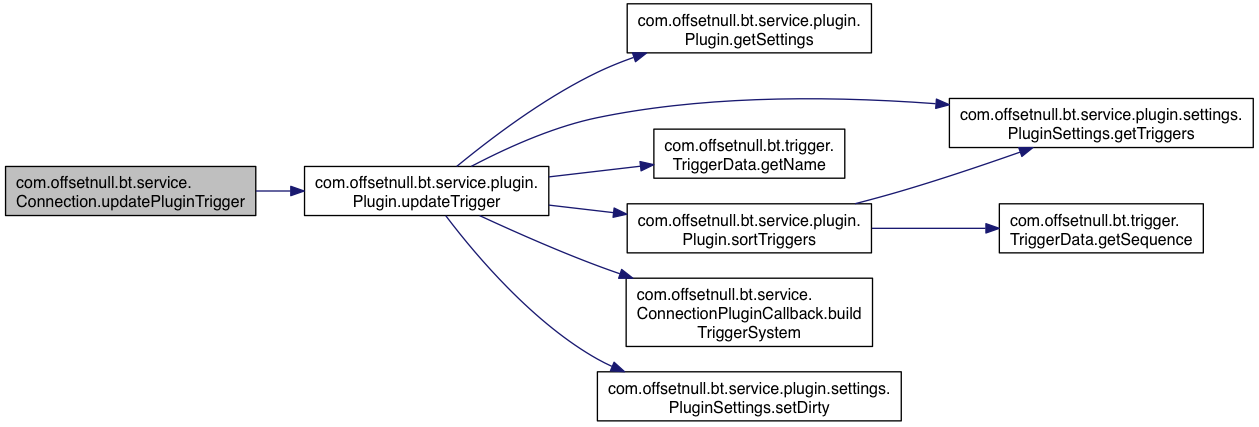

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updateSetting	(	final String	key,
		final String	value
	)

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updateStringSetting	(	final String	key,
		final String	value
	)

Updates a string setting in the main settings plugin.

Parameters

key	key id of the setting to affect.
value	the value to use.

final void com.offsetnull.bt.service.Connection.updateTimer	(	final TimerData	old,
		final TimerData	newtimer
	)

Updates a timer in the main settings plugin.

Parameters

old	Old timer data.
newtimer	New timer data.

Here is the call graph for this function:

final void com.offsetnull.bt.service.Connection.updateTrigger	(	final TriggerData	from,
		final TriggerData	to
	)

Updates a trigger in the main settings plugin.

Parameters

from	Old trigger.
to	New trigger.

final void com.offsetnull.bt.service.Connection.updateWindowBufferMaxValue	(	final String	plugin,
		final String	window,
		final int	amount
	)

Possibly Deprecated. Sets the buffer size for a target window in a target plugin.

Parameters

plugin	The target plugin.
window	The target window.
amount	The new buffer size value.

final void com.offsetnull.bt.service.Connection.windowXCallB	(	final String	name,
		final String	functions,
		final byte[]	bytes
	)		throws RemoteException

protected

Work horse method for WindowXCallB Lua function.

Parameters

name	Name of the target window.
functions	Name of the anonymous global function to call.
bytes	Bytes to provide as an argument to
function

Exceptions

RemoteException Thrown when there is a problem with the aidl bridge.

final void com.offsetnull.bt.service.Connection.windowXCallS	(	final String	name,
		final String	function,
		final Object	o
	)		throws RemoteException

Work horse method for WindowXCallS Lua function.

Parameters

name	Name of the target window.
function	Name of the anonymous global function to call
o	String argument to provide to
function

Exceptions

RemoteException Thrown when there is a problem with the aidl bridge.

Member Data Documentation

final int com.offsetnull.bt.service.Connection.MESSAGE_ADDFUNCTIONCALLBACK = 16

static

Sent from Plugin.RegisterSpecialCommandFunction and registers a .command callback.

final int com.offsetnull.bt.service.Connection.MESSAGE_BELLINC = 5

static

Sent from the Processor indicating the bell character has been recieved.

final int com.offsetnull.bt.service.Connection.MESSAGE_CONNECTED = 30

static

Sent from DataPumper indicating that the tcp connection to the server has started.

final int com.offsetnull.bt.service.Connection.MESSAGE_DISCONNECTED = 8

static

Sent from the DataPumper when the connection has been lost.

final int com.offsetnull.bt.service.Connection.MESSAGE_DODIALOG = 6

static

Not sure where this is sent from, I think the Xml parser or the datapumper. Used to put up an alert dialog with some text to the foreground window if connected.

final int com.offsetnull.bt.service.Connection.MESSAGE_DRAWINDOW = 12

static

Sent from Plugin.DrawWindowFunction, I think this is no longer used and deprecated.

final int com.offsetnull.bt.service.Connection.MESSAGE_EXPORTFILE = 22

static

Sent from either the foreground window or the save settings routine, exports settings to a given path.

final int com.offsetnull.bt.service.Connection.MESSAGE_GMCPTRIGGERED = 19

static

Sent from Processor indicating that gmcp has triggered.

final int com.offsetnull.bt.service.Connection.MESSAGE_IMPORTFILE = 23

static

Sent from either the foreground window or the settings loader routing, imports settings from a given location into this active connection.

final int com.offsetnull.bt.service.Connection.MESSAGE_INVALIDATEWINDOWTEXT = 18

static

Sent from plugin functions, used to redraw a target window.

final int com.offsetnull.bt.service.Connection.MESSAGE_LINETOWINDOW = 10

static

Sent from Plugin.LineToWindowFunction contains a TextTree.Line object to send to a specific window.

final int com.offsetnull.bt.service.Connection.MESSAGE_LUANOTE = 11

static

Sent from Plugin.NoteFunction with text to send to the output window.

final int com.offsetnull.bt.service.Connection.MESSAGE_MCCPFATALERROR = 9

static

Sent from the DataPumper indicating a fatal mccp error.

final int com.offsetnull.bt.service.Connection.MESSAGE_NEWWINDOW = 13

static

Sent from Plugin.NewWindowFucntion used to create a new miniwindow with then given configuration.

final int com.offsetnull.bt.service.Connection.MESSAGE_PLUGINLUAERROR = 26

static

Sent from Plugin, indicating an error condition from a script entry point.

final int com.offsetnull.bt.service.Connection.MESSAGE_PROCESS = 7

static

Sent from Processor, contains the non-telnet related data in the incoming transmission.

final int com.offsetnull.bt.service.Connection.MESSAGE_PROCESSORWARNING = 3

static

Sent by various objects to throw text to the window bypassing the trigger parse routine.

final int com.offsetnull.bt.service.Connection.MESSAGE_RELOADSETTINGS = 33

static

Sent from the foreground window, initiates the settings reloading process.

final int com.offsetnull.bt.service.Connection.MESSAGE_SAVESETTINGS = 21

static

Sent from various sources, initates the settings loader routine.

final int com.offsetnull.bt.service.Connection.MESSAGE_SENDDATA_BYTES = 9

static

Sent from the foreground window with data to be sent to the server.

final int com.offsetnull.bt.service.Connection.MESSAGE_SENDDATA_STRING = 20

static

Sent from various sources, containing a string to be sent to the server in the selected encoding.

final int com.offsetnull.bt.service.Connection.MESSAGE_SENDGMCPDATA = 24

static

Sent from Plugin.SendGMCPDataFunction, sends the given data to the server using gmcp.

final int com.offsetnull.bt.service.Connection.MESSAGE_SENDOPTIONDATA = 4

static

Sent from the Processor to send data to the DataPumper's output thread.

final int com.offsetnull.bt.service.Connection.MESSAGE_SETTRIGGERSDIRTY = 34

static

Sent from various sources, indicates that triggers need to be rebuilt, I believe this is deprecated.

final int com.offsetnull.bt.service.Connection.MESSAGE_STARTCOMPRESS = 2

static

Bridge between Processor and DataPumper to initiate MCCP compression.

final int com.offsetnull.bt.service.Connection.MESSAGE_STARTUP = 1

static

Initiates the connection with the server.

final int com.offsetnull.bt.service.Connection.MESSAGE_TERMINATED_BY_PEER = 41

static

Sent from the DataPumper indicating the orderly shutdown of the tcp connection.

final int com.offsetnull.bt.service.Connection.MESSAGE_TRIGGER_LUA_ERROR = 32

static

Sent from AckWithResponder when a trigger executes script code that results in error.

final int com.offsetnull.bt.service.Connection.MESSAGE_WINDOWBUFFER = 15

static

Sent from Plugin.WindowBufferFunction and sets the buffering option of a window. I think this is deprecated.

final int com.offsetnull.bt.service.Connection.MESSAGE_WINDOWXCALLB = 25

static

Sent from Plugin.WindowXCallB, same as WindowXCallS only great care is taken to preserve the "bytes".

final int com.offsetnull.bt.service.Connection.MESSAGE_WINDOWXCALLS = 17

static

Sent from Plugin.WindowXCallSFunction, calls an anonymous global function in the target window with data.

The documentation for this class was generated from the following file:

/Users/render/apps/BlowTorch/BTLib/src/com/offsetnull/bt/service/Connection.java

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
